Product Description

Product Overview

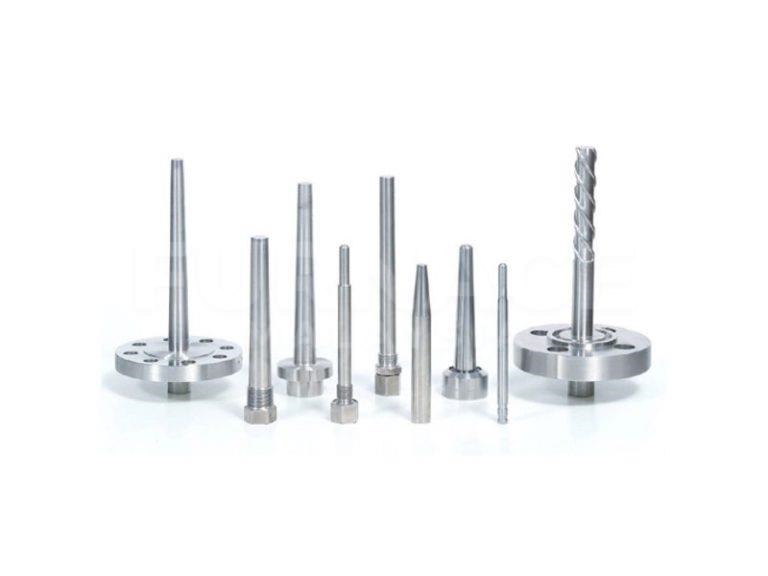

Thermowell is a tube, closed at one end, which protects the probe and allows its removal without breaking the liquid seal. Many materials and styles are available to match application requirements. Thermowells drilled from solid bar stock provide the highest pressure ratings, and welded models are also available.

Features

Types of Thermowells

  • Threaded
A Threaded Thermowell has threads at its one end and is screwed into the process. Thread can be of tapered or parallel type. Parallel or tapered thread is made for convenient installation into a weld in fitting directly into the process.

  • Flanged Weld
The flanged thermowell has the flanged top end that is connected using nuts and bolts to the pipe. Thermowell has a flange collar that is attached to a coupling flange. This type of thermowells is used when frequent replacement or removal is required.
Flanged thermowells are used for high-temperature applications.
Socket weld thermowell.

A socket weld thermowell is welded into a weldalet and a weld in Thermowell is welded directly into the process. Welded connection can be used when the process is not corrosive and routine removal is not required. High integrity  is achieved  and this technique is suitable for high temperature and pressure.
