Vacuum Atmosphere Chamber Furnace
>
1400℃ Vacuum Box Furnace

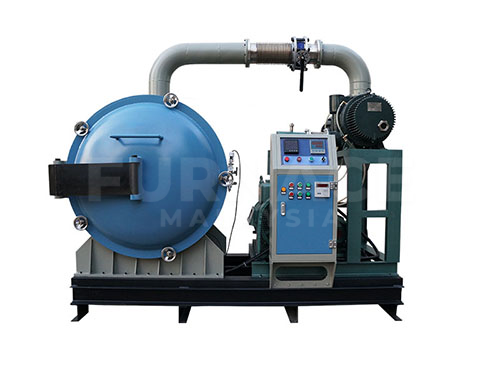

1400℃ Vacuum Box Furnace
Model No.: WTZ-36-14A
Chamber Size: 200*300*120mm
Continuous Temp.: 1100℃
Heating Element: High Quality HRE
Temperature Precision: ±1℃
Thermocouple: N Type
Our Services:
Furnace Consultation, Malaysia | Furnace Installation, Malaysia | Furnace Spart Parts, Malaysia
Coverage Area:
Johor, Melaka, Negeri Sembilan, Pahang, Selangor, Terengganu, Kelantan, Perak, Pulau Pinang, Kedah, Perlis, Sabah, Sarawak, Malaysia
Whatsapp
Email
Product Description
Product Overview
1400℃ WTZ series products are mainly for the daily application development of the laboratory, high-quality furnace materials and stable temperature control system to ensure the reliability of the experimental data; the product uses high-purity alumina material as the furnace material, and the high-quality Silicon molybdenum rod is used for heating element, and the temperature controller uses microcomputer PID control module to achieve precise temperature control and constant temperature requirements.
Features
The furnace material is vacuum-formed alumina ceramic fiber material and does not drop powder in high temperature, heat capacity is small, energy saving above 50%.
The heating element is made of high-quality Silicon molybdenum rod, which can bear large load, stable and long service life
The heating rate is fast, from room temperature to 1300 degrees, generally takes 90 minutes
High precision of temperature control, small temperature compensation and temperature accuracy ± 1 ° C.
Using intelligent PID temperature control instrument, with program function, can set the temperature rise curve, can be programmed 30 segments
Electronic components are used in Schneider products, with leakage protection, safe and reliable
The machine will send out an alarm signal to the over-temperature during the working process, and automatically complete the protection action
After the instrument program is set, just press the run button and the next work will be completed automatically
Optional air inlet can be used to purge and protect the inert gas such as air. It can also be installed with an exhaust chimney and connected with stainless steel bellows to discharge the toxic and harmful gases volatilized in the furnace to the designated location
Application
1400°C Vacuum Atmosphere box furnace mainly provides high temperature heat treatment environment for industrial, research institutes, factories and other industrial laboratories, and is applied to new materials such as metal materials, graphite materials, lithium battery materials, crystalline materials and so on.
Technical Parameters
Model
WTZ-3-14A
WTZ-8-14A
WTZ-12-14A
WTZ-18-14A
WTZ-36-14A
WTZ-45-14A
OEM
Inner Dimension
(WxDxH)mm
100×120×100
150×150×150
200×200×200
200×300×200
250×320×250
300×400×300
Any size
Outer Dimension
(WxDxH)mm
383×432×660
510×560×870
600×620×920
600×693×920
610×730×970
1040×840×1250
-
Type
Benchtop
Furnace Structure
Alumina Ceramic Chamber, Temperature control system, Heating element, Furnace shell ,Main Electric Parts and other relative accessories
Max Temperature
1400°C
Continue Temp.
1600°C
Power Supply
220V/2kW
220V/4kW
220V/5kW
220V/6kW
380V/7kW
380V/13kW
-
Heating Element
High quality Molybdenum Disilicide ( MoSi2) heater
Chamber Material
High temperature 1800 Grade polycrystal alumina ceramic fiber material
Temp Precision
±1°C
Thermocouple
B type
Temp Controller
YUDIAN brand 518P Microprocessor PID controller as standard or any other brand as option
Electronic Parts
SCHNEIDER main electronic parts /High quality electric transformer
Heating Rate
≤15°C/min ( suggest 10°C/min for longer life using of furnace )
Safety Protection
Overheat and thermocouple-break alarm
Certification
ISO9001 /CE/ SGS
Furnace Shell
High quality cold-rolled steel sheets CNC processing
Insulation
High quality thermal insulation material to ensure a good uniformity
Accessories
One pair of high temperature gloves, One pair of crucible tongs, one catalog and operation manual
Optional
Paperless recorder, Stainless steel exhaust chimney, Quartz /Alumina crucible
